Clearaudio Smart Phono V2

MODE:

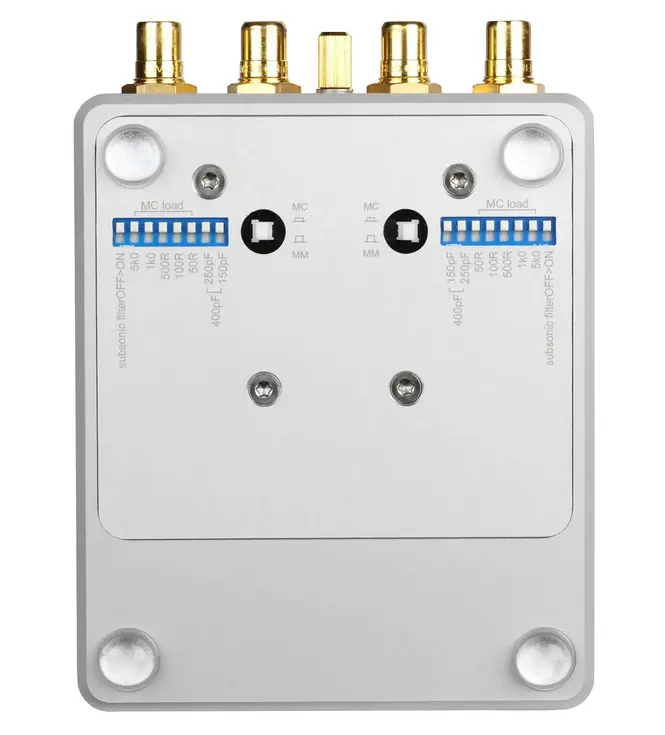

• MM / MC switchable with jumper (on underside)

• Subsonic filter switchable with jumper (on underside)

GAIN AT 1 kHz:

• 34 dB (MM mode)

• 54 dB (MC mode)

INPUT IMPEDANCE:

• 50 Ω, 100 Ω, 500 Ω, 1 kΩ,

• 5 kΩ / 150 pF, 250 pF, 400 pF (MC mode)

• 47 kΩ / 150 pF, 250 pF, 400 pF (MM mode)

RIAA ACCURACY:

± 0.3 dB @ 10 Hz – 100 kHz

DISTORTION:

< 0.004 % MC (“A” @ 1 kHz / -1 dB @ MAX)

SIGNAL-TO-NOISE RATIO:

• 85 dB (A) (MM mode)

• 72 dB (A) (MC mode)

OVERLOAD MARGIN:

18 dB / MC (Gain Control on MAX)

MAXIMUM OUTPUT VOLTAGE:

10 V RMS (1 kHz)

RECORDING CHARACTERISTIC EQUALISATION:

According to RIAA (time const.: 75 μs / 318 μs / 3180 μs)

CHANNEL SEPARATION:

> 90 dB @ 1 kHz, opposite channel short-circuited

OUTPUT IMPEDANCE:

75 Ω

INPUTS:

unbalanced (RCA)

OUTPUTS:

• unbalanced (RCA)

• optional headphone output (jack: 3.5 mm)

POWER CONSUMPTION:

• Max. power consumption: 2.7 watts

• In operation: 2.7 watts

• Switched off: 0.0 watts

POWER SUPPLY:

± 18 V DC / 300 mA (external plug-in power supply, plastic housing)

WEIGHT:

approx. 620 g (preamplifier and power supply)

DIMENSIONS (W/D/H):

approx. 95 × 125 × 34 mm

MANUFACTURER’S WARRANTY:

3 years*
